Fixed Installation Series

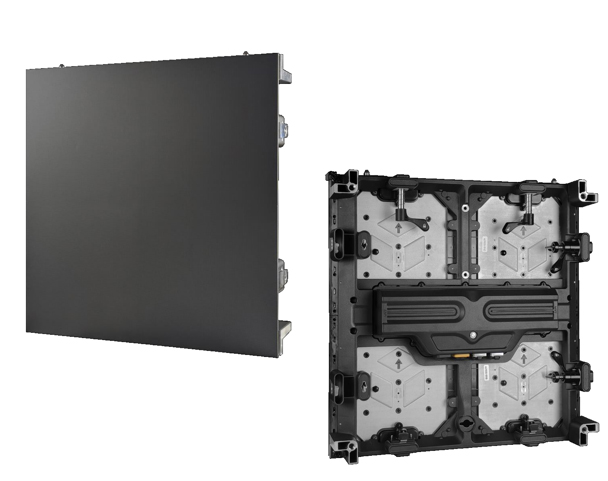

Scenico outdoor ArcF series P5.95/P7.81/P10.41

  • Product Detail



CONCAVE & CONVEX SCREEN
The ArcF series screen can follow the shape of the architecture and turn it into an modern and attractive land mark

INNOVATIVE DESIGN
Scenico ArcF series enable a free limit to those city designer and architecture designer
It follows the shape of the building and ensure concave and convex led screen are both availble
P5.95/P7.81/P10.41 are available

100% FRONT SERVICE
MODULE SIZE:250*250MM
    2 strips only to fix and unfix module from front side of led display
FAST INSTALLATION
    Replace one module within 5 seconds and it is very convenient for those who work in the air!


APPLICATION FOR ARCF
When you need ArcF?

INNOVATIVE DESIGN
When the diameter is short!
When you need front service!

The smallest diameter  with ArcF
concave diameter =2.85m
convex diameter = 3.827m


PRODUCT PARAMETERS
Pixel Pitch 5.95mm 7.81mm 10.41mm
Pixel Density 28224 dots/m2 16384 dots/m2 9216 dots/m2
Pixel Composition SMD2727 SMD3535 SMD3535
Refresh Frenquency 1600Hz
Module Size 250×250 mm
Cabinet Size 1000×1000 mm
Brightness 6000  cd/m2
Scan mode 1/7scan 1/4 scan 1/4 scan
IP Rating IP65/IP65
View Angle (Horizontal/vertical) 120°/120°
